Rugged PTZ Camera Buyer's Guide

For traffic, industrial, and government infrastructure, rugged means specific ratings, specific temperatures, and a service life measured in decades. Here is what to require, and how the WTI Sidewinder meets each requirement.

See the SidewinderDownload Datasheet

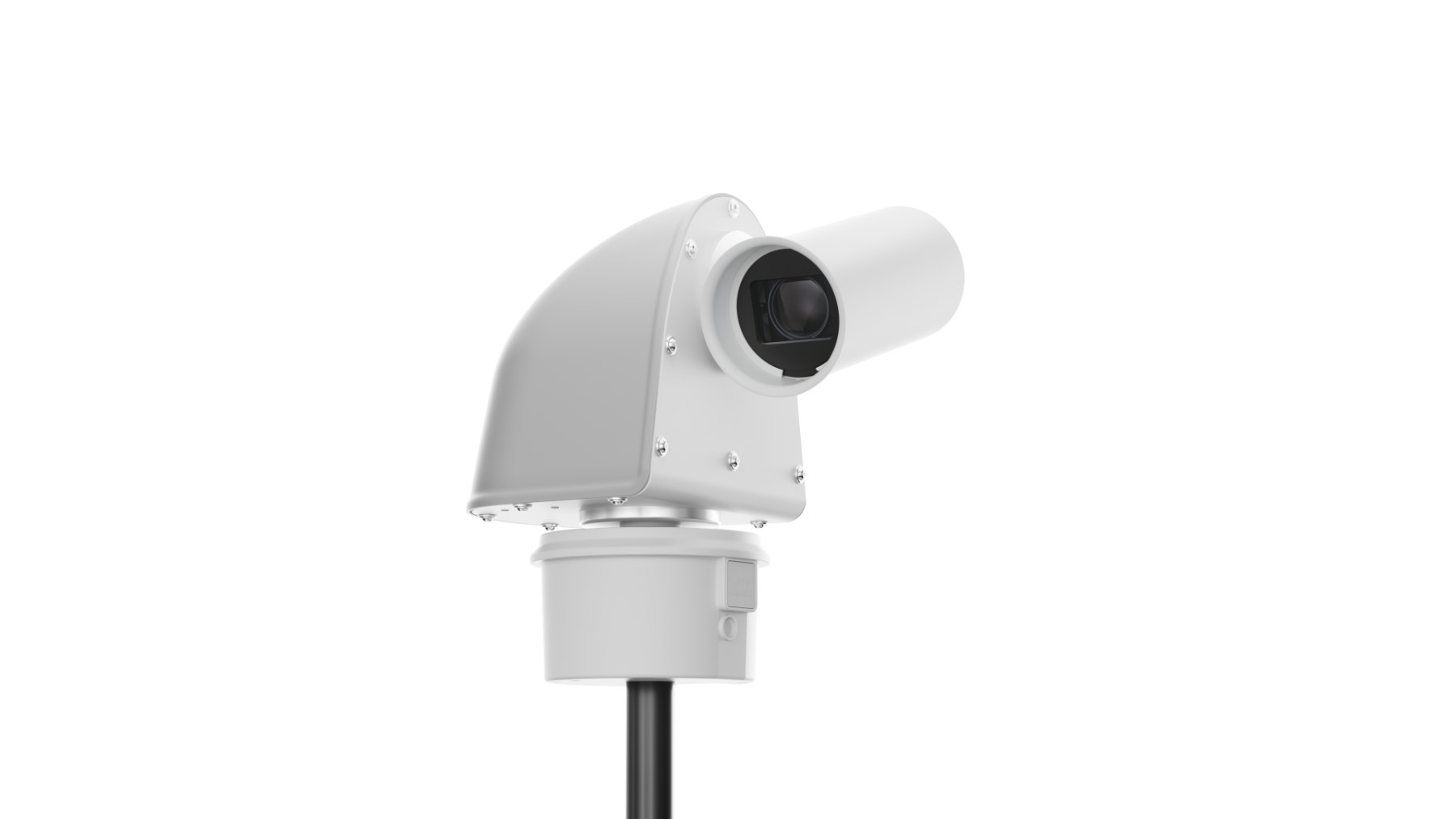

WTI Sidewinder rugged PTZ camera on a pole mount

The Rugged PTZ Camera Checklist

01 · Ingress

IP68, not IP66

IP66 resists powerful water jets. IP68 means the housing survives continuous submersion, which is the only rating that guarantees a sealed unit after years of thermal cycling on a pole.

The Sidewinder uses a sealed, all-aluminum IP68 housing, and every camera is submersion tested in Ventura before it ships, so the seal is proven on the unit you receive rather than on a type sample.
02 · Temperature

-40°F to +165°F operating range

Cabinet-adjacent poles in the Southwest and exposed bridges in the Northeast both need the full range, with heaters that actually clear ice and fog rather than just keep electronics alive.

The Sidewinder is rated for -40°F to +165°F. Its directly heated window uses closed-loop heater control to clear ice and fog, and the enclosure itself is heated, so the optics stay usable across the full range instead of the electronics merely surviving it.
03 · Standards

NEMA TS2 and NEMA 4X

NEMA TS2 is the traffic cabinet environmental standard: temperature, humidity, shock, vibration, and electrical transients. NEMA 4X adds corrosion resistance. Salt fog testing (ASTM B117) proves it for coastal and de-iced roads.

The Sidewinder is NEMA TS2 compliant and rated NEMA 4X, and its housing has passed ASTM B117 salt fog exposure, so it holds up on coastal corridors and on roads that are de-iced every winter.
04 · Maintenance

Self-cleaning glass, no wiper

The most common camera service call is a dirty window. Wipers wear out and smear. A hydrophilic coating sheets water and debris off in rain, and lets crews "wash" the camera by pointing it at the sky.

The Sidewinder’s window carries a hydrophilic coating that sheets water and debris off in the rain, with no wiper to wear out or smear. TxDOT-area and KC Scout users have documented that it lets them avoid bucket-truck visits.
05 · Mechanics

Preset repeatability you can measure

Presets that drift make incident verification slow. Require a repeatability figure in degrees, continuous 360° pan, and a slew rate that gets from one ramp to the next in a second or two.

The Sidewinder returns to presets within 0.05°, pans and tilts continuously through 360°, and slews at 150° per second, so operators move from one ramp to the next in about a second and see the same framing every time.
06 · Lifecycle

Mean time before failure, U.S. support, and BABA

Infrastructure cameras stay up for a decade or more. Ask for a mean-time-between-failures figure, where repairs are performed, and whether the product meets Build America, Buy America without a waiver for federally funded work.

The Sidewinder has an 11.8-year mean time before failure. It is built, supported, and repaired in Ventura, California, and it complies with Build America, Buy America without a waiver, so federally funded projects can specify it directly.

Copy-Ready Requirements

Paste into a DOT or consultant specification. WTI can supply a complete specification section on request.

Request Full Spec Section
  • The PTZ camera shall be rated IP68 and NEMA 4X with an all-aluminum housing, and shall be submersion tested by the manufacturer prior to shipment.
  • The camera shall operate from -40°F to +165°F and shall be compliant with NEMA TS2 environmental requirements and ASTM B117 salt fog exposure.
  • The camera window shall be hydrophilic coated and directly heated with closed-loop heater control; mechanical wipers shall not be required.
  • The camera shall provide continuous 360° pan and tilt with preset repeatability of 0.05° or better and a slew rate of at least 150°/second.
  • The camera shall provide 1080p video with a minimum 30x optical zoom, wide dynamic range, de-fog, and electronic image stabilization.
  • The camera shall support ONVIF and NTCIP, and shall be powered by IEEE 802.3bt PoE++.
  • The camera shall be manufactured in the United States and shall comply with the Build America, Buy America Act without waiver; the manufacturer shall provide signed compliance documentation.

Rugged PTZ Camera Questions

What is a rugged PTZ camera?
A pan-tilt-zoom camera engineered for continuous outdoor operation in harsh environments: sealed to IP68, rated NEMA 4X for corrosion, compliant with NEMA TS2 for traffic cabinets, operating from -40°F to +165°F, with a heated window to prevent ice and fog.
What does NEMA TS2 mean for a traffic camera?
NEMA TS2 is the traffic controller assembly standard defining temperature, humidity, shock, vibration, and electrical requirements for roadside cabinet equipment. A NEMA TS2 compliant camera is tested to the same environmental profile as the controller it connects to.
Is a PoE++ traffic camera practical on long cable runs?
Yes, within Ethernet distance limits. IEEE 802.3bt delivers up to 90 W over all four pairs, enough for a heated PTZ. WTI's Striker injector supplies it from the cabinet at -40°C to +74°C.
Is the WTI Sidewinder BABA compliant?
Yes. WTI's signed 2026 compliance letter certifies Sidewinder PTZ camera systems are manufactured in Ventura, California with greater than 55% U.S. component cost, meeting Build America, Buy America requirements without a waiver. Buy America details →
