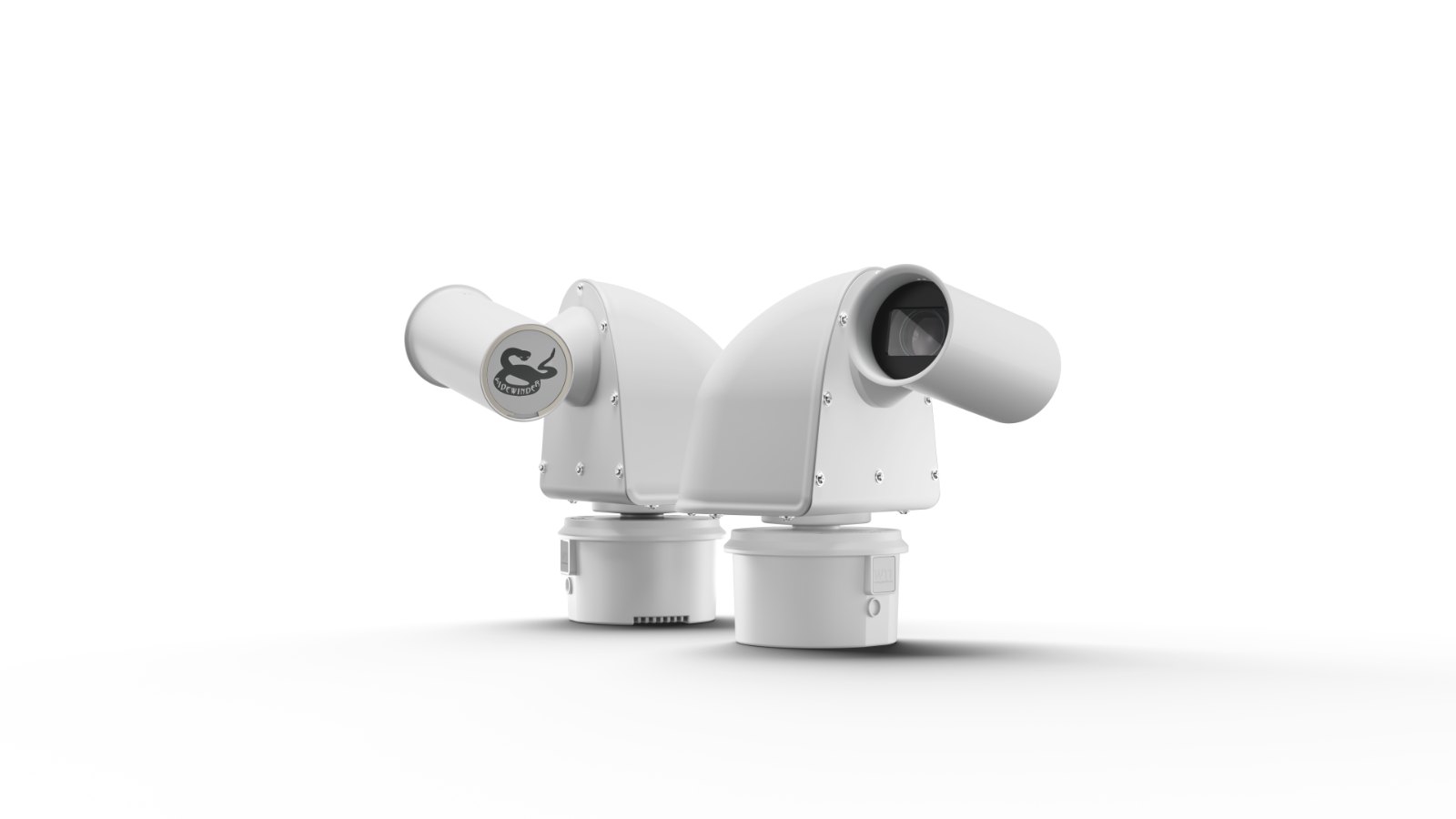

WTI Sidewinder Rugged PTZ Camera
Purpose-built for demanding transportation and infrastructure environments. Twenty years deployed on U.S. roads, with an 11.8-year mean time between failures.
Download Datasheet- IP68 / NEMA 4X
- NEMA TS2
- -40°F to +165°F
- PoE++
- BABA Compliant
- Made in USA
- PROVEN ON THE ROAD
- 20-year
track record - Two decades of Sidewinder deployments with state DOTs, from urban intersections to high-speed highways.
- BUILT TO LAST
- 11+ years
before failure - 11.8-year mean time between failures. All-aluminum IP68 housing, every camera water-tested before it leaves Ventura.

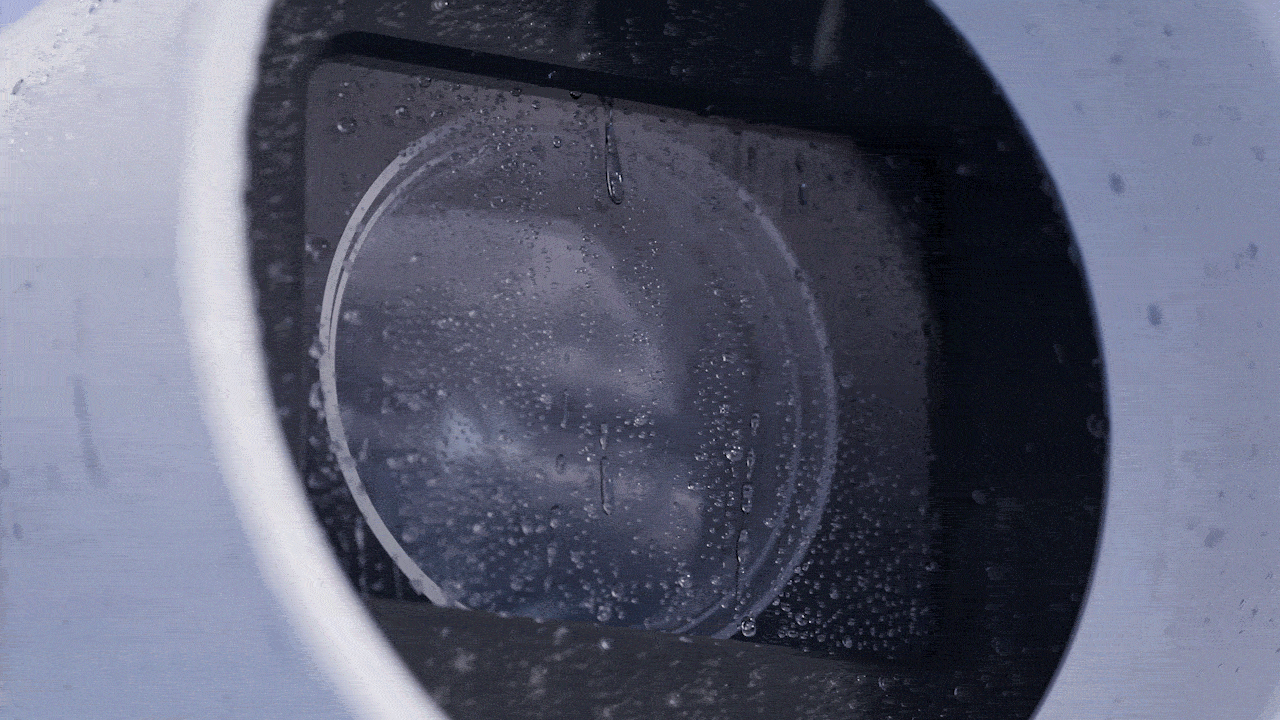

- SELF-CLEANING GLASS
- No wiper
needed - Hydrophilic coated, direct-heated window sheds water and debris. Nothing to wear out or service.
- ITS STANDARDS
- Drop-in
replacement - Fits existing poles, arms, and plates. ONVIF, NTCIP, Pelco-D, COHU, and Bosch protocol support.
Where Sidewinder Is Deployed
- ITS & TrafficFreeways, intersections, bridges, tunnels, work zones, traffic management centers
- Industrial & Critical InfrastructureUtilities, energy, ports, remote facilities, perimeter monitoring
- Airports & Transportation FacilitiesAirfield, perimeter, and operational monitoring
- Security & SpecialtyGovernment, public safety, military variants, custom video applications
Key Features
Learn about our technology in depth →Precision PTZ
Continuous 360° pan and tilt- 0.05° preset repeatability
- 150°/second movement
- Configurable presets, tours, and zones
Rugged Environmental Design
- -40°F to +165°F operating range
- IP68 and NEMA 4X, all-aluminum housing
- ASTM B117 salt fog
- NEMA TS2 compliant
Optical Performance
- 1080p, Sony STARVIS CMOS
- 30x optical zoom
- Wide Dynamic Range and DeFog
- Electronic Image Stabilization
Low-Maintenance Visibility
- Hydrophilic coated window — no wiper required
- Direct-heated window
- Closed-loop heater control
- Heated enclosure with de-fog
Network & ITS Integration
- ONVIF and NTCIP
- Pelco-D, COHU, Bosch
- WTI protocols
- PoE++ power
Camera Health Monitoring
- Internal temperature monitoring
- Internal humidity monitoring
- Configurations: analog, military, AC, PoE++, side egress
- AI analytics included as standard
VS265-R Specifications
From the WTI VS265-R datasheet and company overview. Refer to the datasheet for complete specifications; subject to change without notice.
Download Datasheet- IMAGING
- Resolution
- 1080p (1080p60)
- Sensor
- Sony STARVIS CMOS
- Optical zoom
- 30x
- Image processing
- Wide Dynamic Range (WDR), DeFog, Electronic Image Stabilization
- PTZ
- Pan / tilt
- Continuous 360° pan and tilt
- Preset repeatability
- 0.05°
- Speed
- 150°/second
- Presets, tours, zones
- Fully configurable via WTI Camera Control Software
- WINDOW
- Window coating
- Hydrophilic self-cleaning, no wiper required
- Heating
- Direct-heated window with closed-loop heater control; heated enclosure; de-fog
- ENVIRONMENTAL
- Operating temperature
- -40°F to +165°F (-40°C to +74°C)
- Ingress protection
- IP68, every camera submersion tested before delivery
- Enclosure rating
- NEMA 4X
- Salt fog
- ASTM B117
- Traffic standard
- NEMA TS2
- Housing
- All-aluminum
- POWER
- Power
- PoE++ (IEEE 802.3bt); AC and analog configurations available
- NETWORK
- Protocols
- ONVIF, NTCIP, Pelco-D, COHU, Bosch, WTI protocols
- MONITORING
- Camera health
- Internal temperature and humidity monitoring
- CONFIGURATIONS
- Versions
- Analog, military, AC, PoE++, side egress
- ANALYTICS
- AI analytics
- Standard on all models: counting by class, line crossing, stopped-vehicle, wrong-way, zone dwell, directional counts, calibrated speed
- MECHANICAL
- Mounting
- ITS standard mounting; riser, square plate, pole top, adjustable pole top, side of pole, horizontal pole options
- RELIABILITY
- MTBF
- 11.8 years mean time between failures
- COMPLIANCE
- Domestic content
- BABA compliant, no waiver required; manufactured in Ventura, California

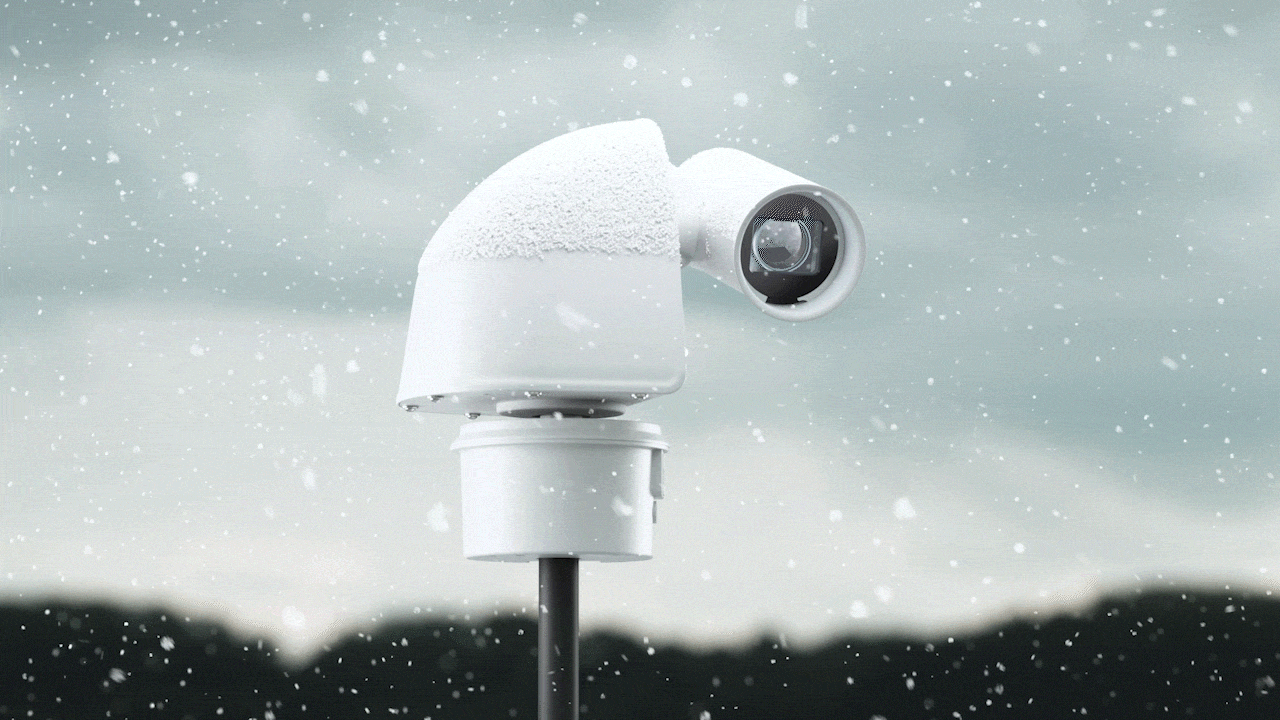

Built for extreme climates
Rated from -40°F to +165°F, with a heated window and enclosure that keep the view clear through snow, ice, and fog.
-40°F+165°FOperating temperature (-40°C to +74°C)
IP68Ingress protection, submersion tested on every unit
NEMA 4XCorrosion-resistant enclosure rating
ASTM B117Salt fog exposure
NEMA TS2Traffic controller environmental standardIntegration and Protocols

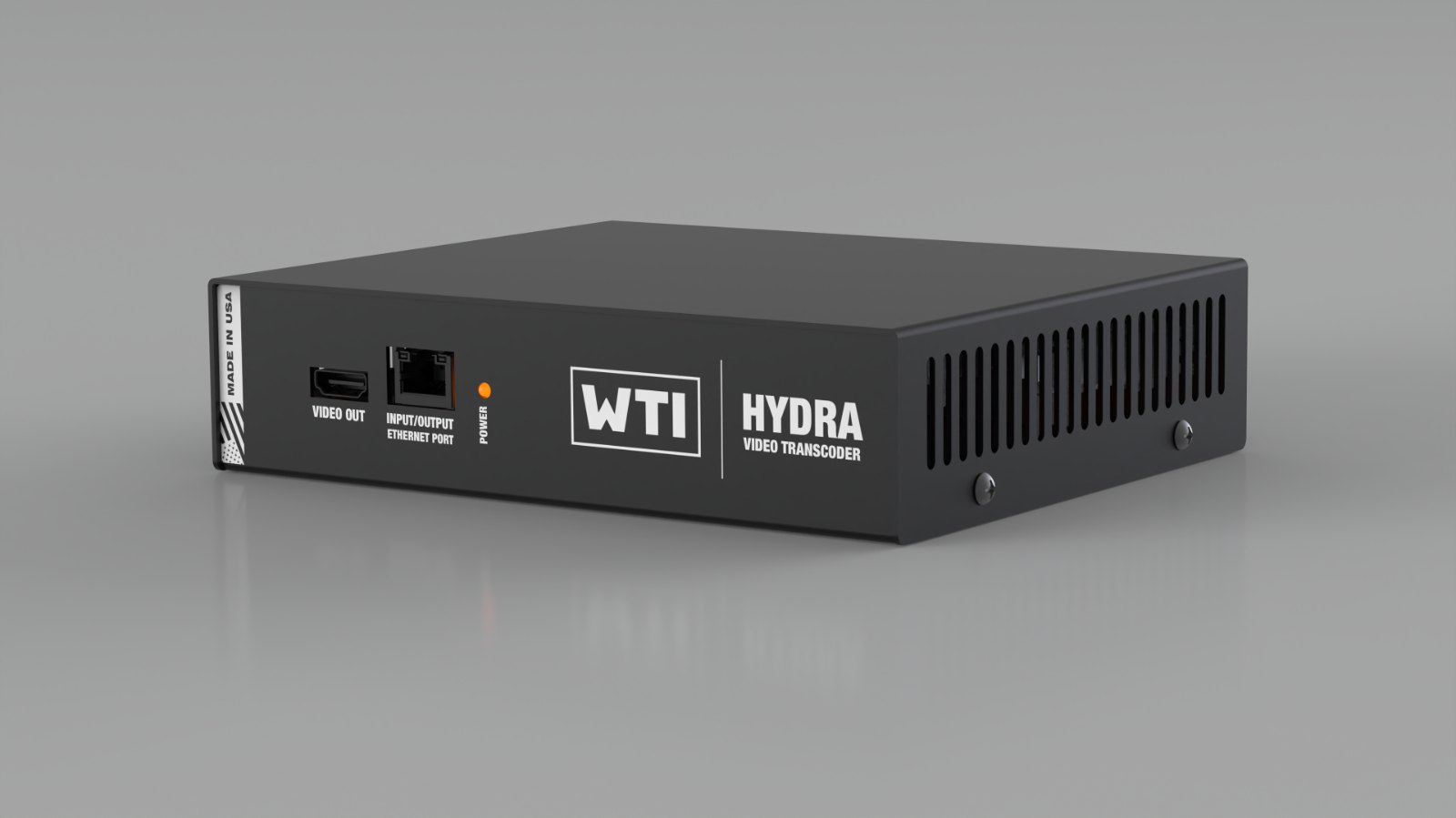

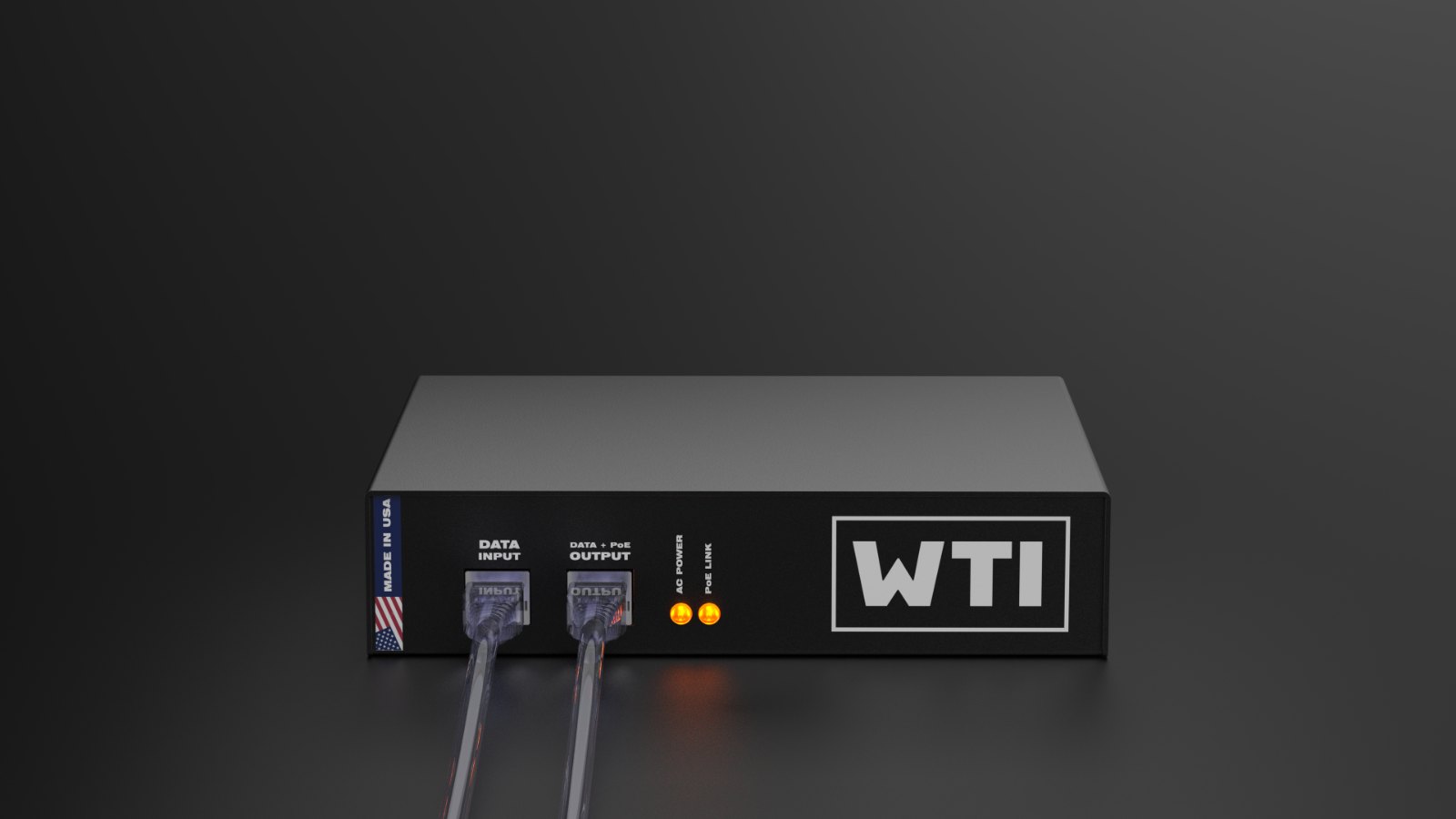

Sidewinder speaks the protocols used across ITS video networks and drops into existing mounting infrastructure. Pair it with the Hydra transcoder to cut backhaul bandwidth by up to 75%, and the Striker injector for 90 W PoE++ at the cabinet.
PROTOCOLS
ONVIFNTCIPPelco-DCOHUBoschWTI protocols
POWER & VIDEO
PoE++ (IEEE 802.3bt)AC variantAnalog variant1080p IP video
SOFTWARE
WTI Camera Control Software 3.10.0 for configuration, presets, tours, and zones. Download from Support →
Documentation
PDF · DATASHEETVS265-R Datasheet2026 edition
PDF · MOUNTINGSidewinder Mounting OptionsRiser, pole top, side of pole, horizontal
PDF · MOUNTINGSidewinder Mount CatalogFull mount catalog
SOFTWARECamera Control Software 3.10.0Latest release · August 2026
Looking for a datasheet for a prior model? Reach out and we’ll send it.
