WTI Carbon-X Fixed Position PoE Camera
A multi-use fixed camera with the same self-cleaning, heated window and sealed aluminum enclosure as the Sidewinder, in a compact PoE body.
Download Datasheet- IP68
- 30x optical zoom
- NEMA TS2
- -40°F to +165°F
- BABA compliant
Key physical features
FRONT · WINDOW AND SUNSHIELD
Self-cleaning hydrophilic windowNo windshield wiper required.
Heated window glassAutomatically de-fogs and de-ices the camera glass.
Integrated sunshieldBuilt into the housing to reduce solar load and glare.

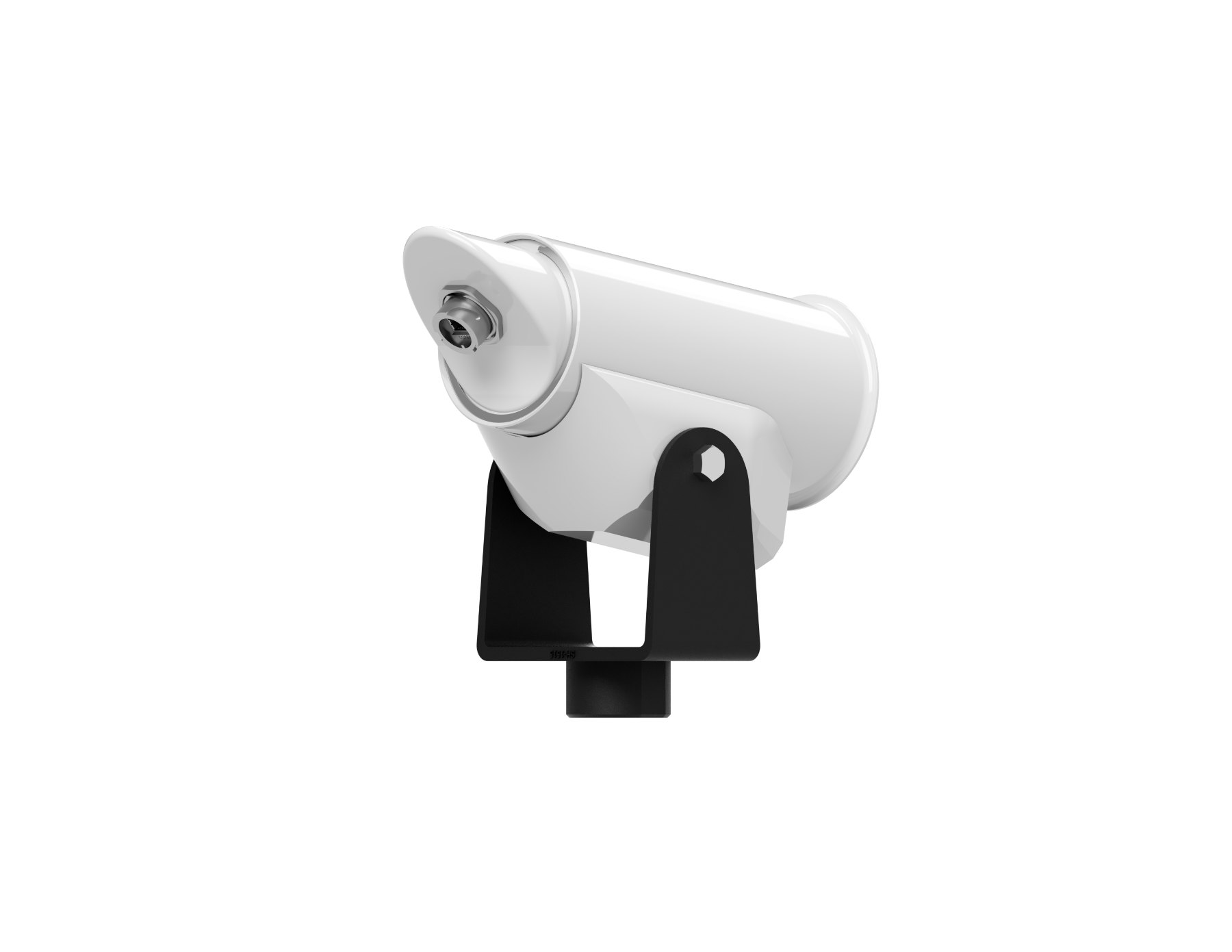

REAR · CONNECTION AND SENSING
Waterproof RJ45 connectorSealed Ethernet port for Power over Ethernet and video.
Internal temperature and humidity sensorMonitor enclosure conditions remotely.

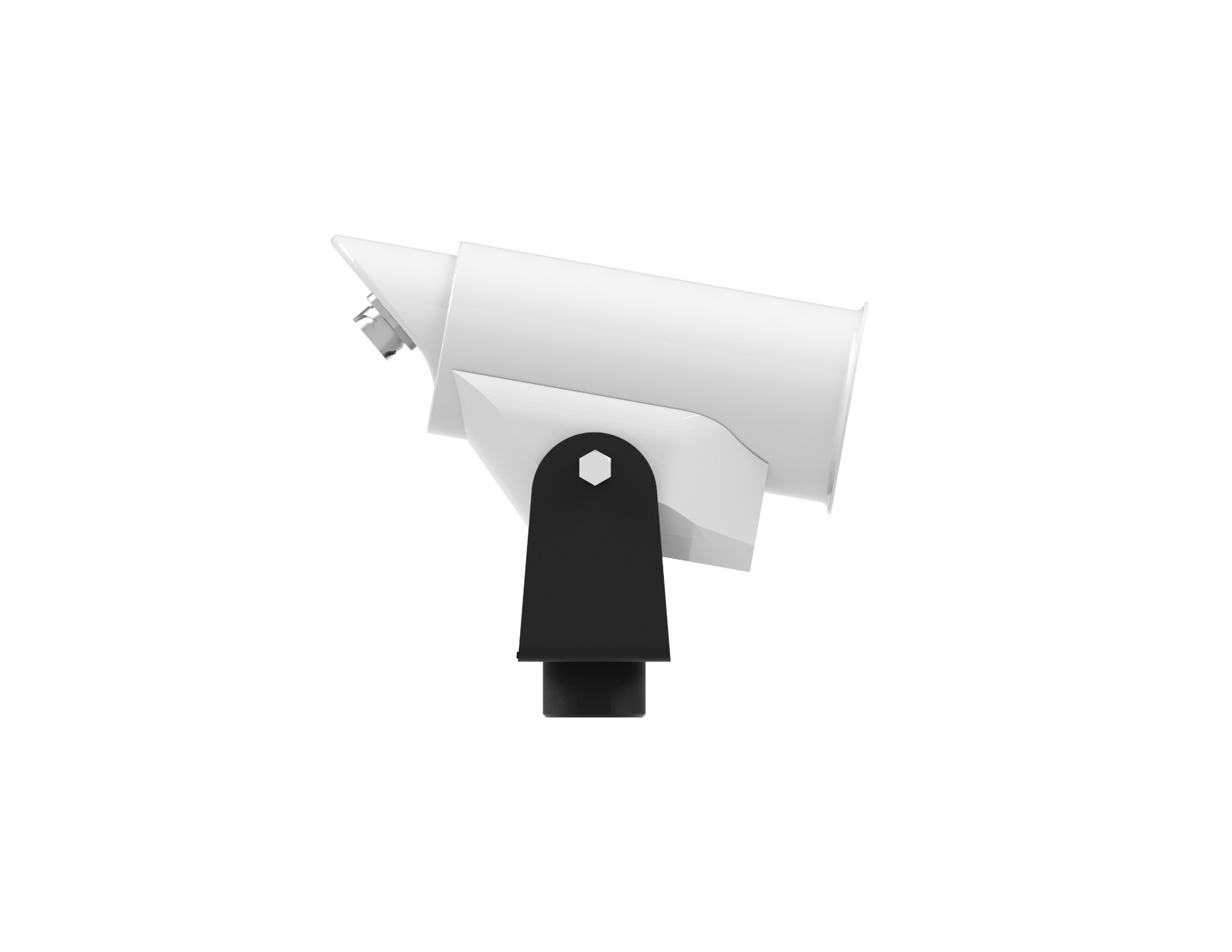

SIDE · ENCLOSURE AND BRACKET
IP68 all-aluminum enclosurePowder-coated aluminum housing with 316 stainless steel fasteners and hardware.
Adjustable mounting bracketPan and tilt set at installation, then locked down.
Specifications
From the WTI Carbon-X datasheet. Subject to change without notice.
Download DatasheetLooking for a datasheet for a prior model? Reach out and we’ll send it.
- ENVIRONMENTAL
- Temperature range
- -40°C to +74°C (-40°F to +165°F)
- Humidity
- 0 to 95% relative
- Protection rating
- IP68
- POWER
- Power consumption
- 15 W max
- Power connection
- Power over Ethernet
- PHYSICAL
- Weight
- 4.5 lbs (2.1 kg) ± 0.5 lbs
- Dimensions
- 3.98" W × 5.12" H × 9.45" L (101 mm W × 130 mm H × 240 mm L)
- Exterior materials
- Powder-coated aluminum exterior housing
- Exterior fasteners
- 316 stainless steel fasteners and hardware
- IMAGE SENSOR
- Sensor
- 1/2.8" Sony Starvis 2 CMOS
- Total pixels
- 2,014 (H) × 1,196 (V) = 2.4M
- Effective pixels
- 1,965 (H) × 1,113 (V) = 2.18M
- Resolution
- 1920 × 1080
- Frame rate
- 60/50 fps, 30/25 fps
- Minimum illumination
- Color: 0.03 lux (F1.7, AGC on) · B/W: 0 lux (IR LED on)
- Scanning system
- Progressive scan
- LENS, ZOOM AND FOCUS
- Zoom ratio
- 30x optical · 15x digital
- Focal length
- f = 4.6 mm to 138 mm
- Aperture ratio
- F1.63 (wide) to F4.85 (tele)
- Focus mode
- Auto (zoom trigger, timer trigger, one push) · Manual (slide control, one push)
- Minimum focus distance
- 0.5 m (wide), 5 m (tele)
- OUTPUT AND NETWORK
- Video encoding
- H.265 / H.264 / MJPEG
- Bitrate
- 512 to 15,000 kbps
- Streaming
- Quadruple (×4) IP streaming · Main up to 1920 × 1080 · Second up to 1280 × 720 · JPEG 1920 × 1080
- Network
- 10BASE-T / 100BASE-TX
- Protocols
- IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, NTP, SMTP, FTP, HTTP, HTTPS, SSL/TLS
- Connection types
- Unicast or multicast
- Control compatibility
- HTTP RESTful API, ONVIF, VISCA over IP
- CAMERA FUNCTIONS
- Exposure modes
- Auto / Manual · Indoor mode 50 Hz / 60 Hz (flicker-free)
- AGC (gain control)
- Auto / Manual
- Shutter speed
- 1/25 (30), 1/50 (60) to 1/5,000
- WDR / BLC / HLC
- On / Off
- Defog
- Off / Low / Middle / High
- Image stabilization
- On / Off
- System mode
- NTSC / PAL
- Privacy mask
- Up to 8 zones
- Motion detection
- 32 × 18 cell
- OSD
- Title, date, resolution
- Security
- Password protection, IP address filtering, HTTPS encryption, brute-force delay protection
- Mirror
- Off, vertical flip, horizontal flip, H+V flip (180° rotation)
- Dynamic noise reduction
- 2D and 3D
- CERTIFICATIONS AND WARRANTY
- FCC class
- FCC Part 15, Class A
- Protection rating
- IP68
- NEMA standard
- NEMA TS2
- Warranty
- 3-year WTI manufacturer warranty
- BABA compliance
- Fully BABA compliant. Designed and manufactured in California. Compliance details →
